S&M BIKES DAGGER FRAME 19.5 GLOSS BLACK PARK 19.5" BMX

Brand: S&M BIKES
Product Code: EC-5453
Availability: In Stock
Price: $354.95



 photo Screen Shot 2017-09-22 at 7.45.20 AM_zpsbruymmh8.png photo DaggerBlack_R-980x552_zps1kr5tp0y.jpg photo DaggerBlack_L-980x552_zpsblbnxhw2.jpg photo DaggerBlack_F-980x551_zpsfoaxbnxt.jpg photo DaggerBlack_E-980x551_zps4f7top4i.jpg photo DaggerBlack_D-980x551_zpsvpbpbmtq.jpg photo DaggerBlack_C-980x551_zpsvzgmbs4x.jpg photo DaggerBlack_B-980x551_zpsnbkcgwg3.jpg photo Screen Shot 2015-10-28 at 7.16.18 AM_zpswk5ntwzl.png














MADE IN THE USA!
new sizes for the dagger to replace the Intrikat frame.. (for now!)

IN GLOSS BLACK AND A 19.5" tt
**new shorter size!****

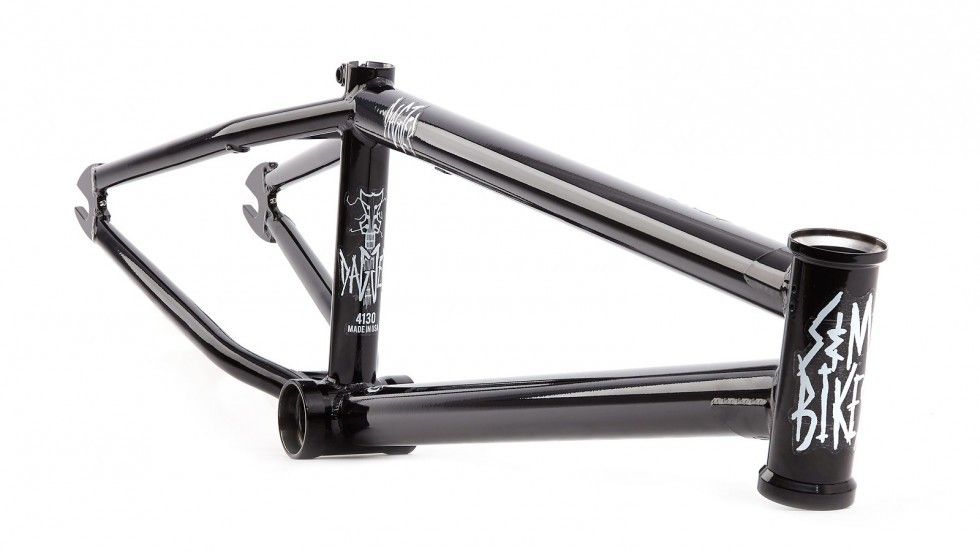

 photo DaggerBlack_L-980x552_zpsblbnxhw2.jpg

990 MOUNTS NOT INCLUDED!
$15 EXTRA

FREE SHIPPING IN THE USA

SPECS:
The S&M Dagger frame is an ultra-responsive park/flatland frame handmade in the USA from 4130 chromoly tubing. Features include an integrated headtube drilled for gyro tabs, top and downtube gussets, externally machined Mid BB shell, integrated seat post clamp, tapered seatstays with bosses for removable U-brake mounts (sold separately), heat-treated dropouts and integrated chain tensioners.




REAR END LENGTH:

12.8″ – 13.6″

HEAD TUBE ANGLE:

75.3°

HEAD TUBE STYLE:

Integrated (45°/45°, 41.8mm)

SEAT TUBE ANGLE:

71°

SEAT CLAMP:

Integrated

SEAT POST SIZE:

1″ (25.4mm)

BB HEIGHT:

11.6″

BB STYLE:

Mid

STANDOVER HEIGHT:

7.25″

BRAKE MOUNTS:

Thread-On 990 (Mounts sold separately)

DROPOUTS:

14mm Slot, 4Q-Baked, Integrated Chain Tensioners

GYRO TABS:

Removable

WEIGHT:

20.5”: 4.90lbs / 2.22kgs

20.75”: 4.95lbs / 2.24kgs

21”: 5.00lbs / 2.26kgs

TUBESET:

Double-Butted True Temper 4130 CrMo







 photo DaggerBlack_L-980x552_zpsblbnxhw2.jpg
