S&M 22 INCH ATF FRAME 22.125 PRIMER CLEAR RAW 22" KIT

Brand: S&M BIKES
Product Code: 18989
Availability: In Stock
Price: $709.95

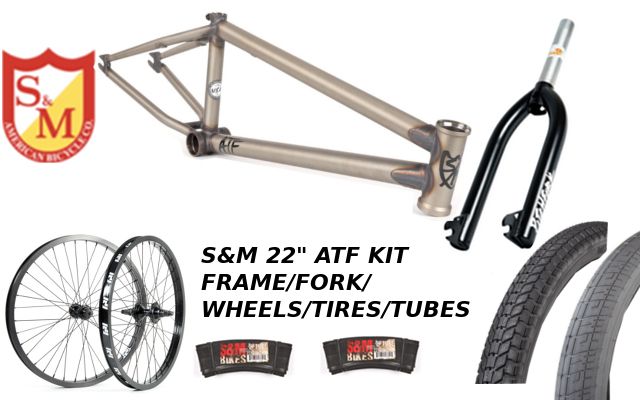

 photo 2017 22quot kit clear black oem_zpsaeusvv8z.jpg photo ATF_primerclear_web_zpseyzzwree.jpg photo newebay_zps6c51331e.jpeg













 photo ScreenShot2013-04-24at74927AM_zps5cd2d8d0.png













UP FOR SALE IS THE NEW S&M 22" FRAME KIT!

THE BRAND NEW ATF 22" FRAME!!

NEW COLORS FOR 2016!

***this kit has 22" wheels/frame/forks***



IN PRIMER CLEAR COAT AND A 22.125" tt

AND BLACK TAPERED  PITCHFORKS

 ALL BLACK WHEELS

(CHROME WHEEL SETS AND ALL BLACK CAN ALSO BE REQUESTED IF THEY ARE AVAILABLE)

(WE ALSO SELL THE 21.625" TT FRAME KIT)





YOU GET THE ATF FRAME, BLACK PITCHFORKS,

WHEELS, TIRES AND TUBES!





FREE SHIPPING IN THE LOWER USA! Check out my other items
!
 photo 2017 22quot kit clear black oem_zpsaeusvv8z.jpg


Sign up for my email newsletters by adding my eBay Store to your Favorites
SPECIAL DEALS!!

SPECS FOR 22"ATF FRAME
REAR END LENGTH: 14.1"
HEAD TUBE ANGLE: 74.25°
STANDOVER HEIGHT: 9"
BOTTOM BRACKET HEIGHT: 12.25"
SEAT TUBE ANGLE: 71°
HEAD TUBE: Integrated Campy Style, Gyro Holes
BOTTOM BRACKET STYLE: Mid
BRAKE MOUNTS: 990
DROPOUTS: 14mm
SEAT POST SIZE: 1" / 25.4mm
WEIGHT:  5.29 lbs.


**** THIS IS THE BRAND NEW 22" ATF FRAME WITH WIDER SEATSTAYS FOR BIGGER 2.425 TIRES*****



SPECS FOR 22" TAPERED PITCHFORKS :

*** NEW 26mm offset forks can be requested if available***





LEGS Double Butted, Tapered, 4130 CrMo
DROPOUTS Laser Cut 3/8″ Slot
STEERER TUBE 1 Piece CNC-Machined 4130 CrMo, Extruded 6061 Steerer Tube Insert
STEERER TUBE LENGTH 166mm
COMPRESSION M24 X 1.5 Thread – 6mm Allen Slot
AXLE TO CROWN HEIGHT 22″ – 340.9mm
OFFSET 33mm
WEIGHT 22″ – 2.25 lb (1.02 kg)
HEAT TREAT 4Q Baked Post-Weld


TIRES: ** add new street Speedball tires for $5 extra per tire****
S&M MAINLINE.
The Mainline is the S&M trail tire. Available in wire bead only with a mid weight, high pressure casing. The 2.1 has a micro knurled surface on a directional tread designed to go on the rear. It features a center tread with a V-notched edge for accelerating and a flat edge for braking. The 2.425 front tire size is a nod to the old 2.125 Comp III we grew up riding in the front. Additional angular raised sections on three rows of knobs help keep the larger Mainline in front
WE HAVE 2.1 AND 2.425
**** please specify or we will ship 2.425 front and 2.1 rear**
*** FRAME WILL CLEAR 2.425, but most brakes will rub. Odyssey Springfields are an
