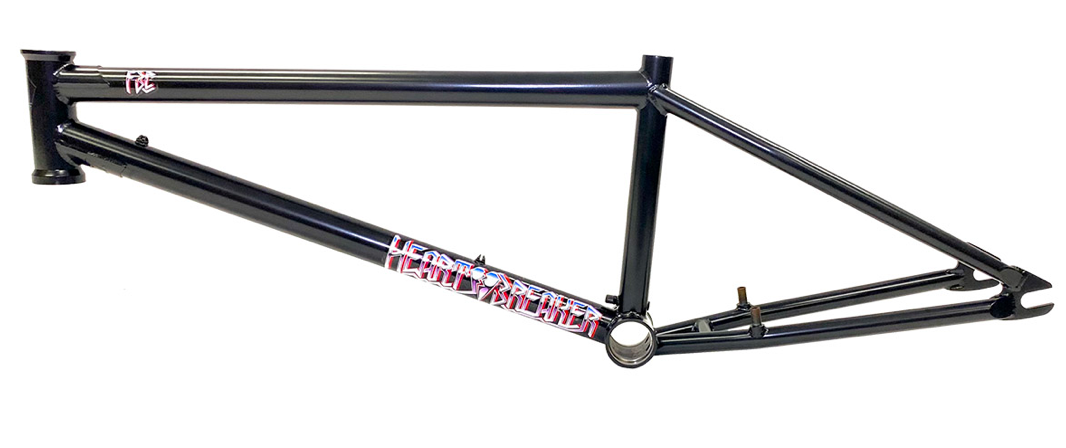

The Heartbreaker is Chris Harti’s long, low and laid back shred sled designed for going fast and big at the trails. Cable routing thru the seat tube keeps your straddle hanger from slapping your down tube and works well with the longer stay length. Single bend chain stays, straight stay bridges and lack of welded on seat clamp are all classic touches on this modern frame designed for timeless BMX riding.

“If you like travelling at high speeds and pulling back as hard as you possibly can while being in control, then the Heartbreaker is the frame for you. It features a mellow 74.5° head tube, a low 11.35” BB height, and a nice 9.15” standover to match. Top it all off with a longer back-end you can trust and you got yourself a machine that’s ready for roasting, Oh! I had to make sure she was built like an ox too.” – Chris Harti

• Butted Supertherm Top Tube
• Straight Gauge Supertherm Down Tube
• Double Gussets
• Slightly Tapered Seat Stays
• Slightly tapered Single Bend Chain Stays
• 2.4″ Tire Clearance (even when slammed)
• Double Butted Seat Tube
• Longer Drop Out Slots
• 4Q Baked 14mm 3/16″ Drop Outs
• Welded on Chain Stay Brake Mounts
• Thru the Seat Tube Cable Routing
• Double Down Tube Cable Guides
• Engraved Heartbreaker Logo Head Tube
• American Made

SPECS >

• Top tube sizes
• Rear end length
• Head tube angle
• Seat tube angle
• BB height
• Standover
• Head tube
• Bottom Bracket
• Dropouts
• Brake mounts
• Seat clamp
• Seat post size
• Weight

• 21″, 21.25″, 21.5″
• 13.8″-14.5″
• 74.5°
• 71°
• 11.35″
• 9.15″
• Integrated
• Mid
• 14mm, 3/16″ Thick
• Chainstay Welded
• Traditional Slot
• 25.4mm
• 21” – 5.18 lb (2.35 kg)
  21.25” – 5.27 lb (2.39 kg)
  21.5” – 5.3 lb (2.4 kg)
