S&M 22 INCH ATF FRAME FORK KIT 21.625 TRANS RED BMX BIKE 22" 22 INCH 21.625"
$589.95
By S&M BIKES
S&M HAS STEPPED UP TO THE PLATE WITH
THE 22" REVOLUTION!
WE OFFER THE WHOLE SETUP!
FRAME,FORKS,WHEELS, TIRES, AND TUBES
COMBINED SHIPPING OFFERED!
UP FOR SALE IS A BRAND NEW S&M BIKES

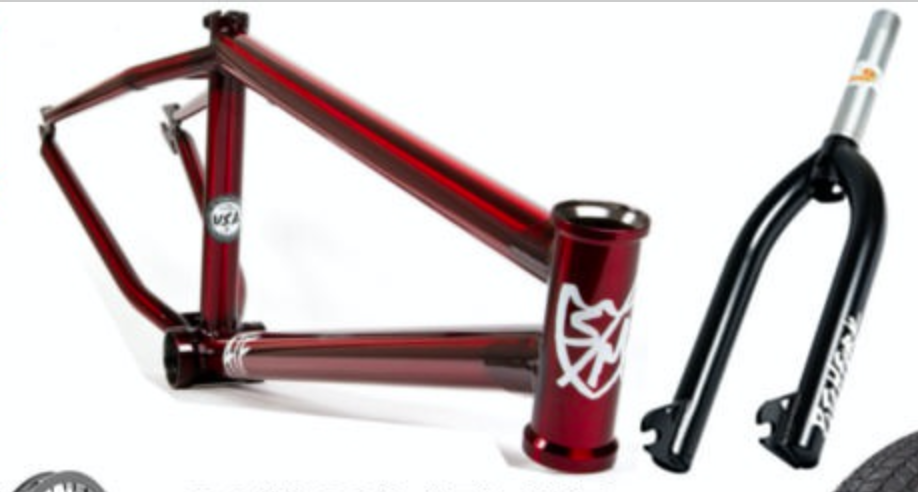

22" ATF FRAME AND 22" BLACK WIDEMOUTH FORKS
FREE SHIPPING IN THE LOWER USA STATES!!

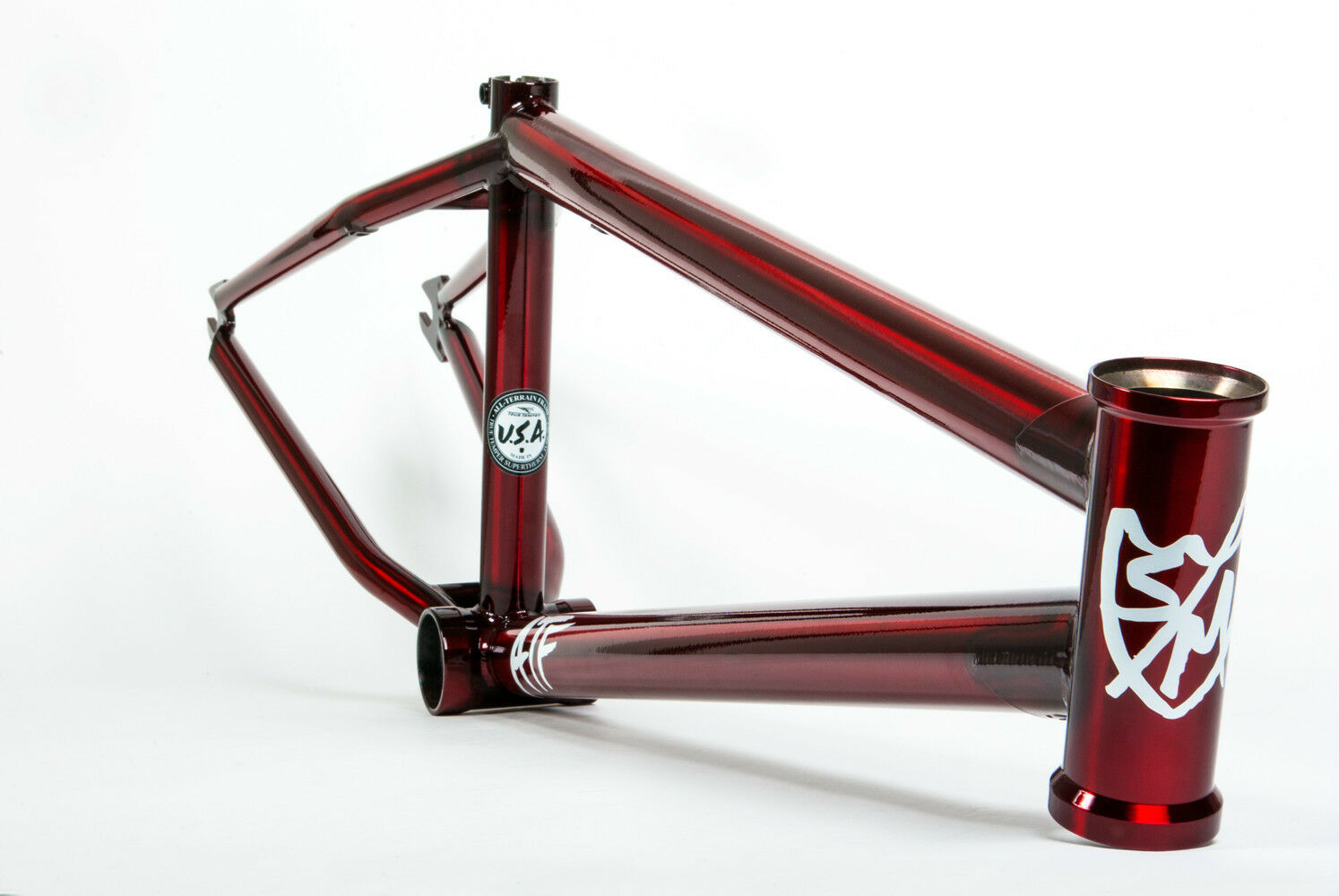

FRAME IN TRANS RED AND A 21.625" TT
(WE ALSO SELL THE 22.125 TT VERSION)
FRAME SPECS
| REAR END LENGTH: | 14.1" |
| HEAD TUBE ANGLE: | 74.25° |
| STANDOVER HEIGHT: | 9" |
| BOTTOM BRACKET HEIGHT: | 12.25" |
| SEAT TUBE ANGLE: | 71° |
| HEAD TUBE: | Integrated Campy Style |
| BOTTOM BRACKET STYLE: | Mid |
| BRAKE MOUNTS: | Thread On |
| DROPOUTS: | 14mm |
| SEAT POST SIZE: | 1" / 25.4mm |
| WEIGHT: | 5.29 lbs. |

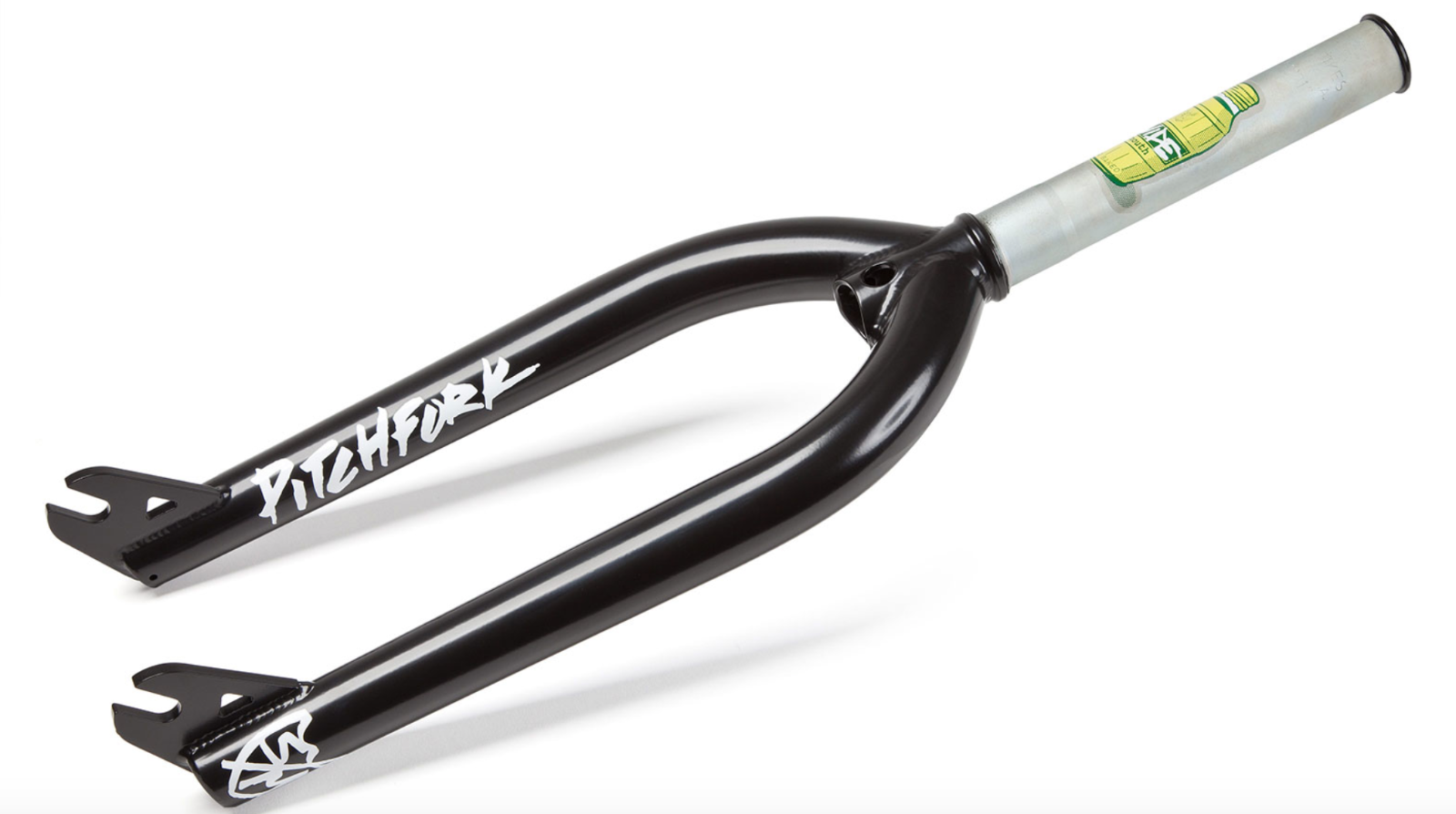

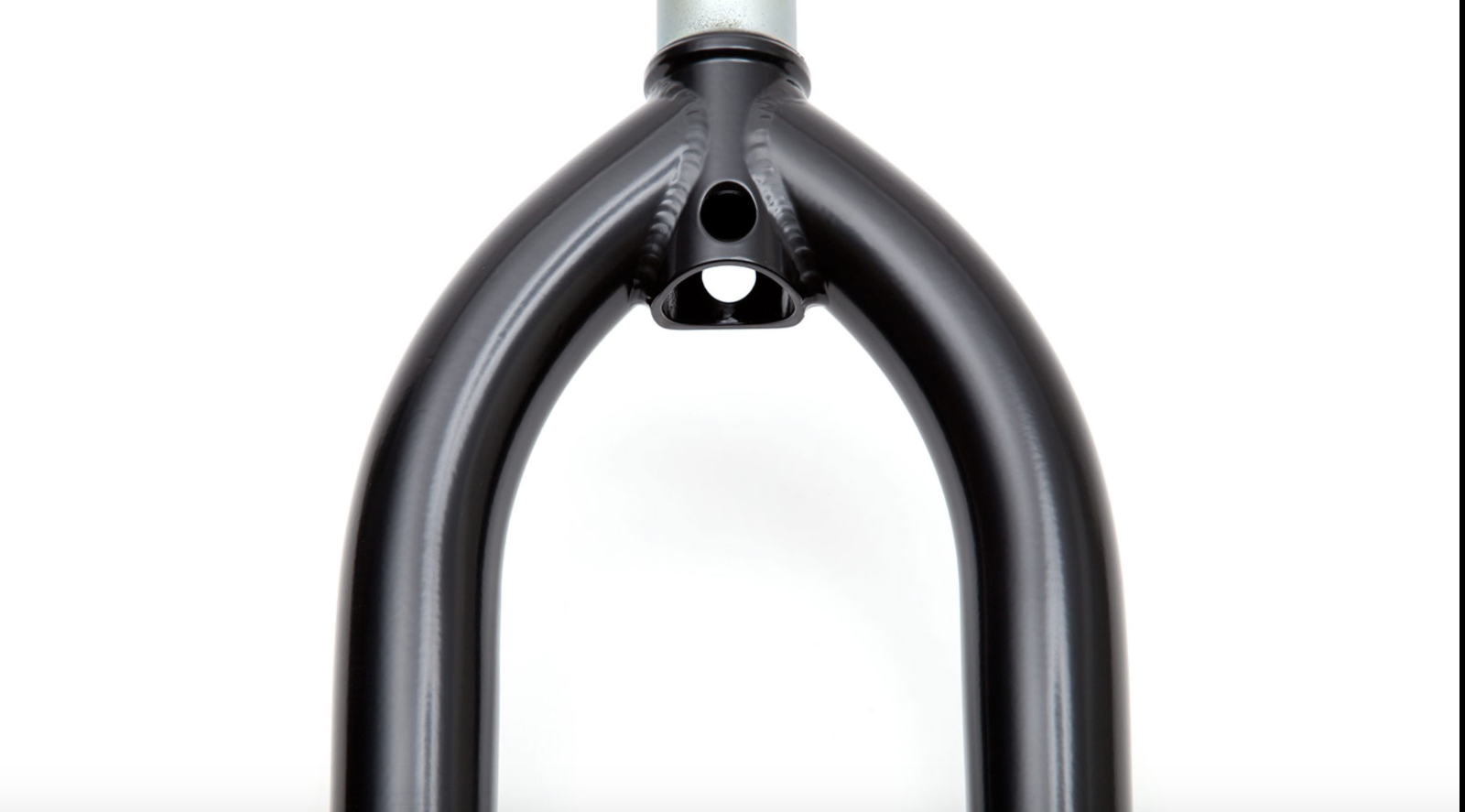

FORKS:

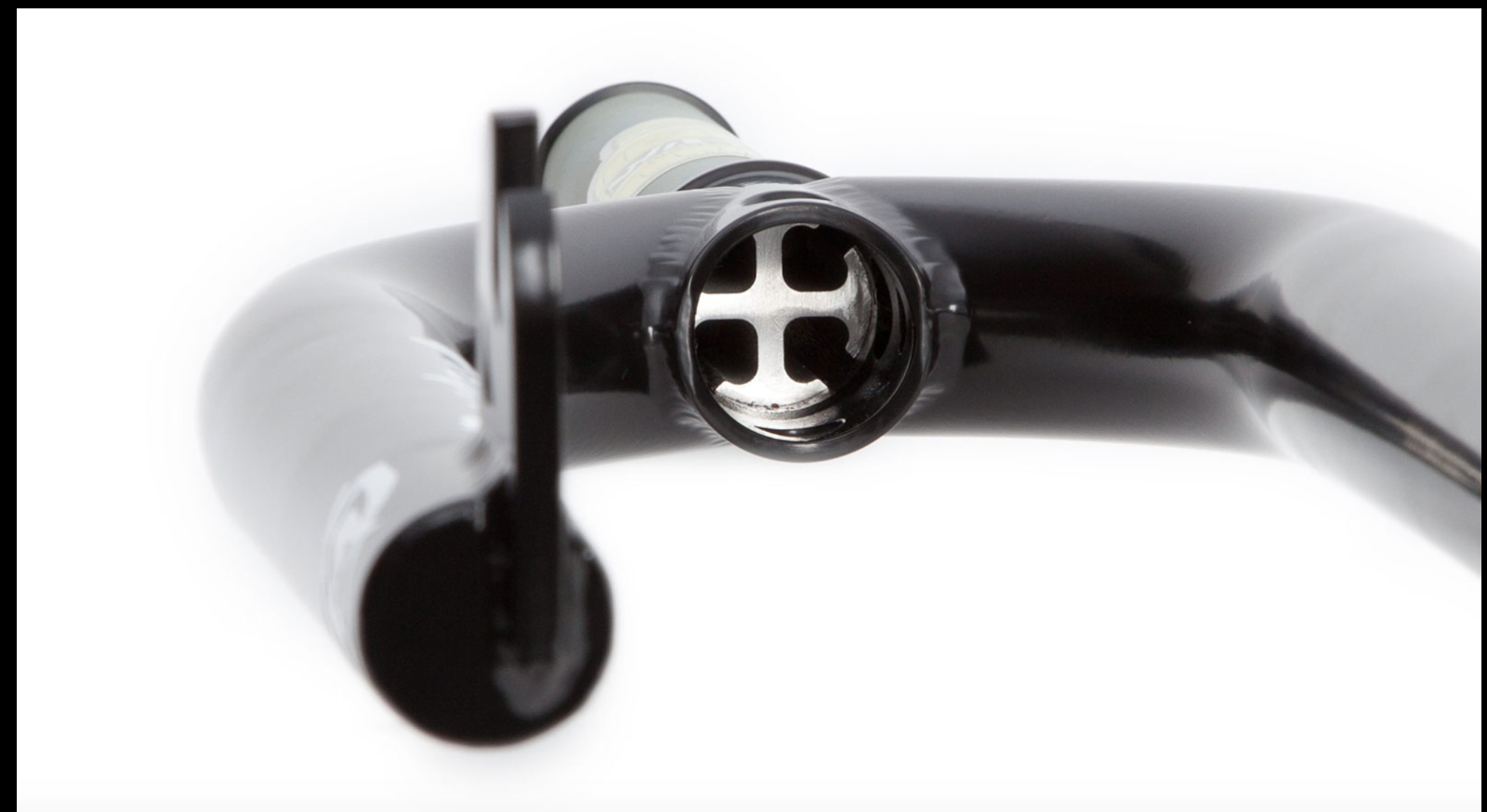

| LEGS | Double Butted, Tapered, 4130 CrMo |

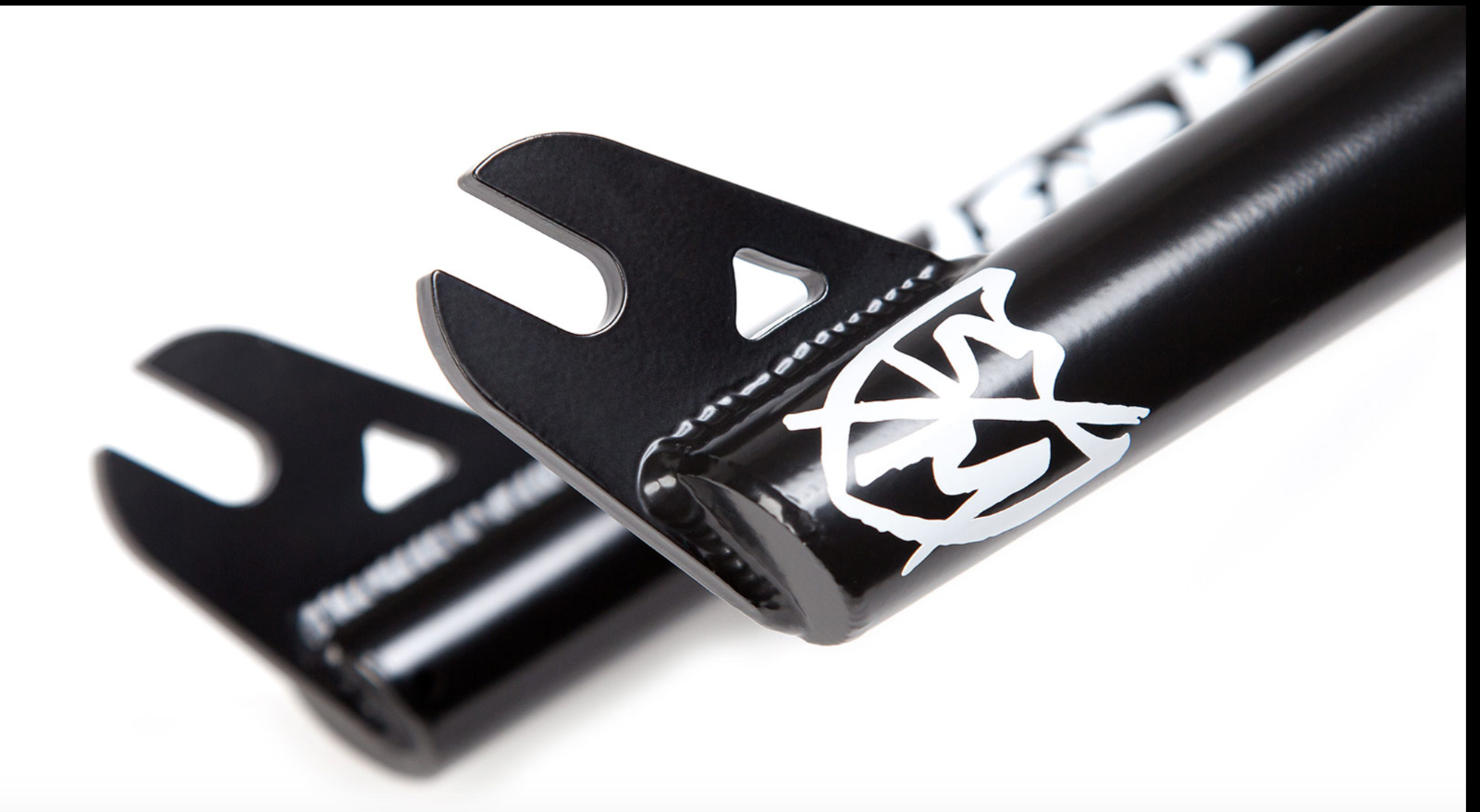

| DROPOUTS | Laser Cut 3/8″ Slot |

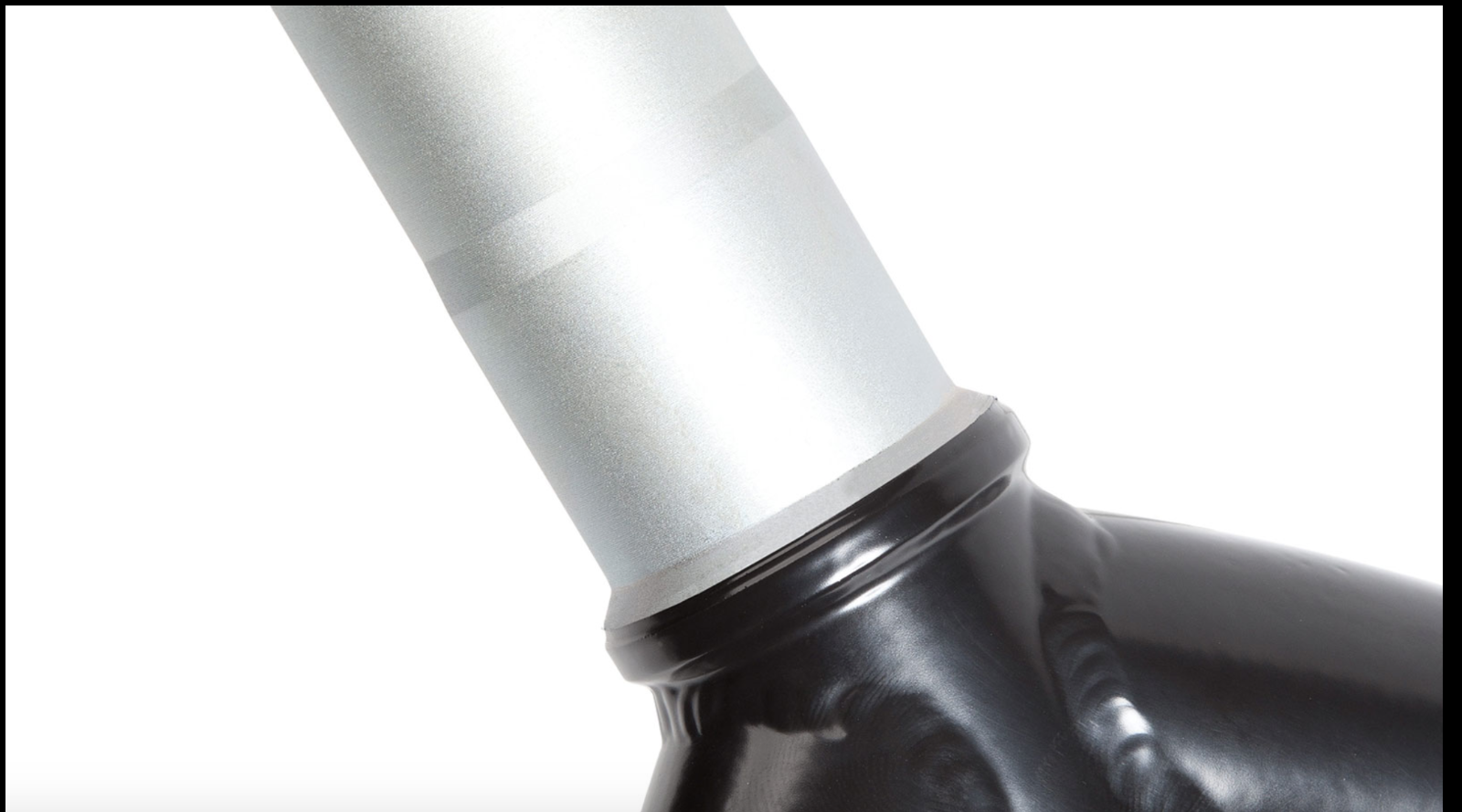

| STEERER TUBE | 1 Piece CNC-Machined 4130 CrMo, Extruded 6061 Steerer Tube Insert |
| STEERER TUBE LENGTH | 173mm |

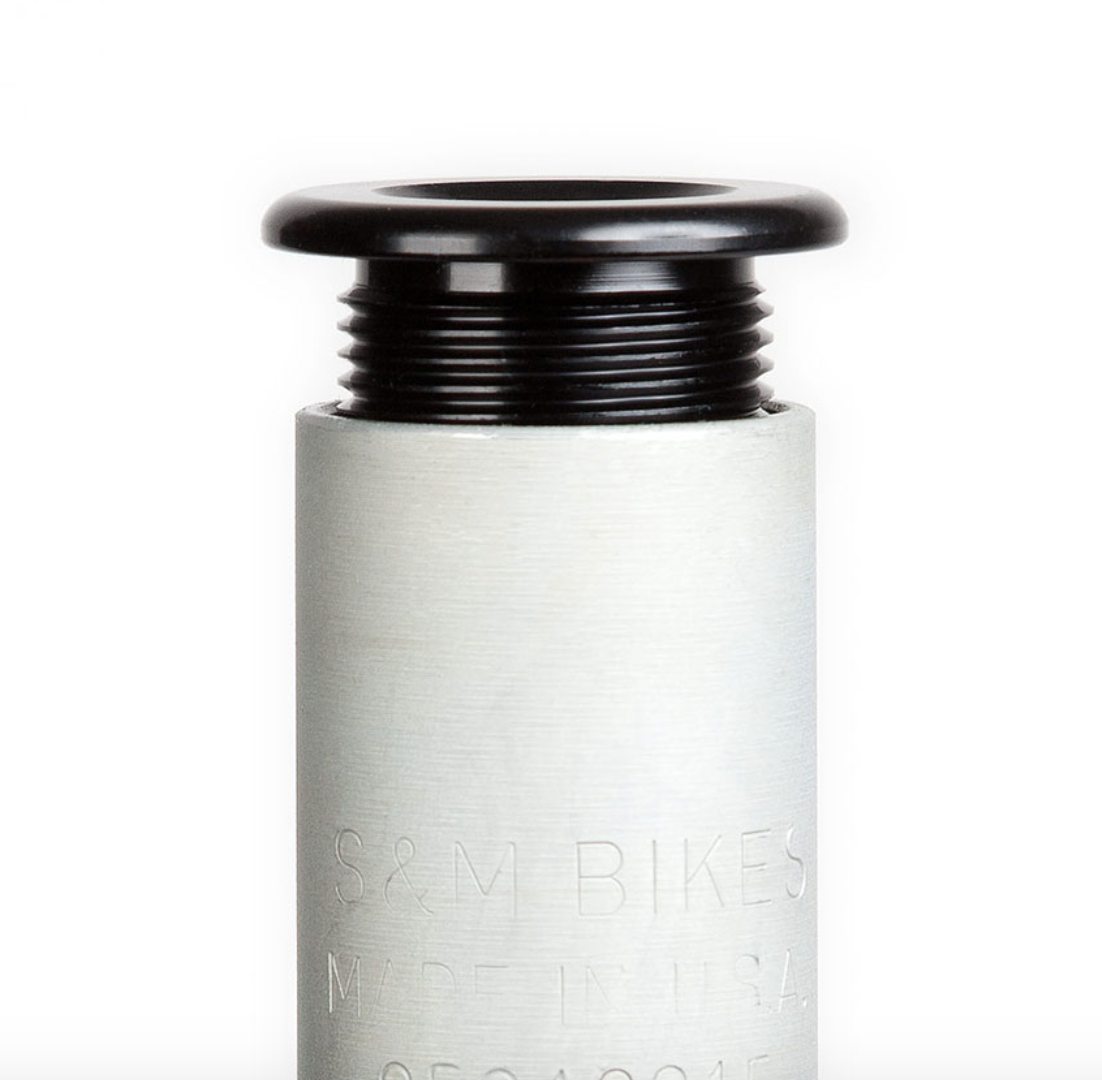

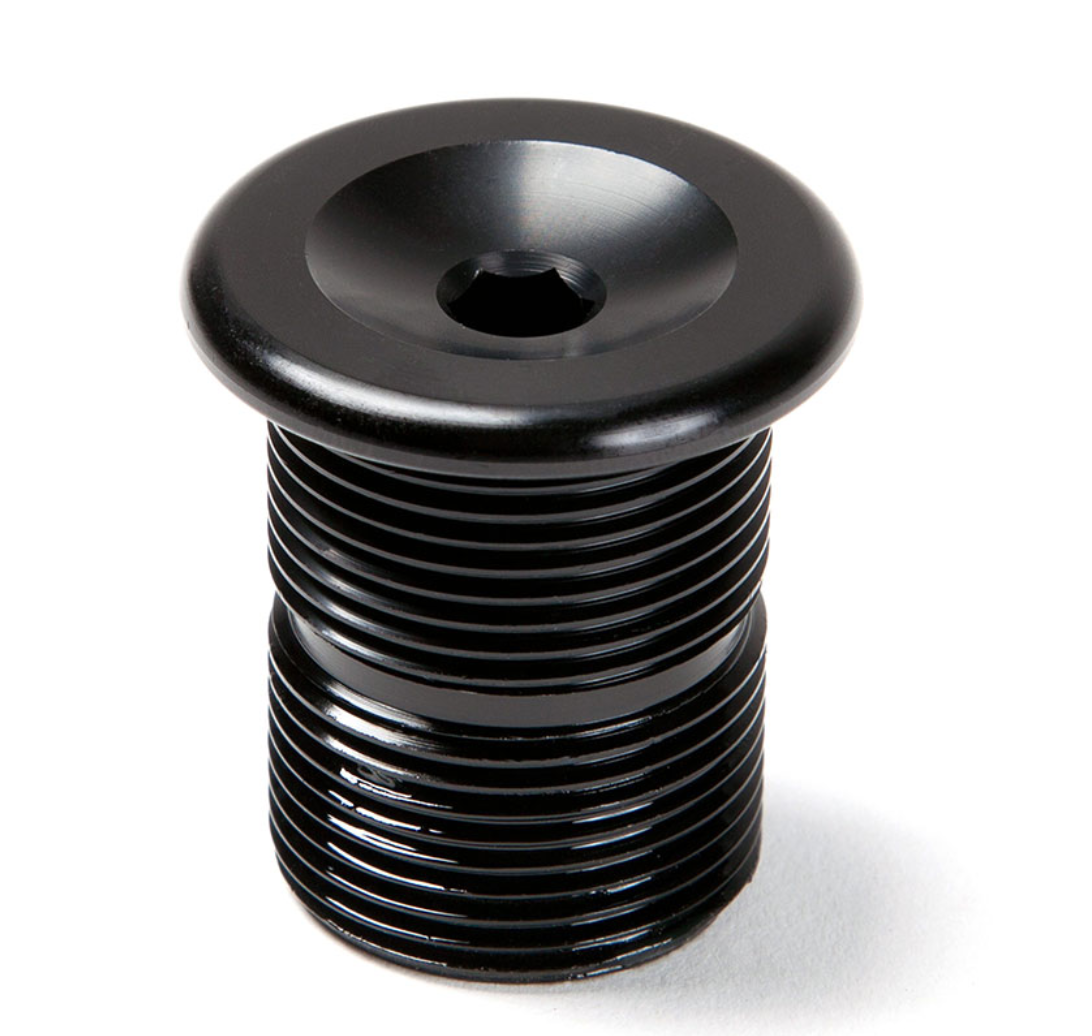

| COMPRESSION | M24 X 1.5 Thread – 6mm Allen Slot |
| AXLE TO CROWN HEIGHT | 22″ – 345.9mm |
| OFFSET | 33mm |
| WEIGHT | 2.35 lb (1.06 kg) 22″ |
| HEAT TREAT | 4Q Baked Post-Weld |
| TIRE CLEARANCE | 2.45″ |
