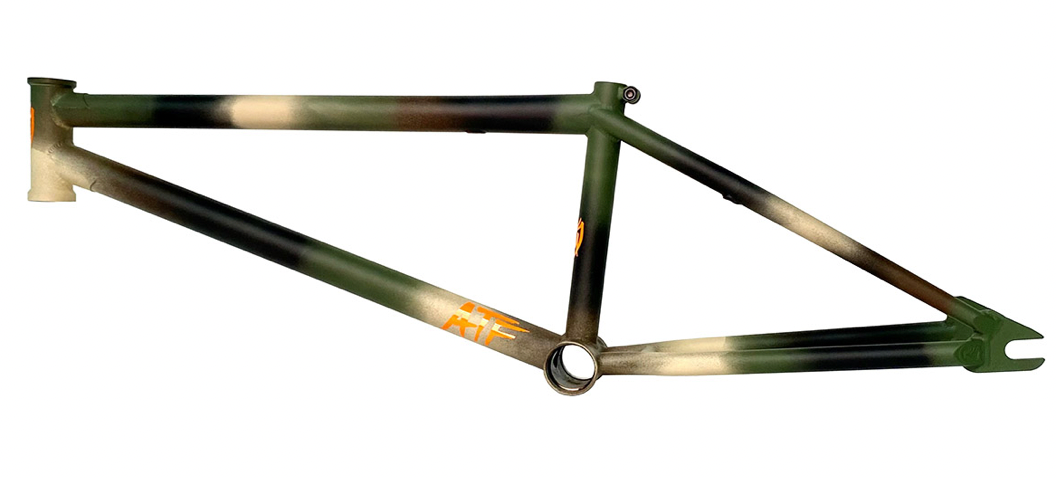

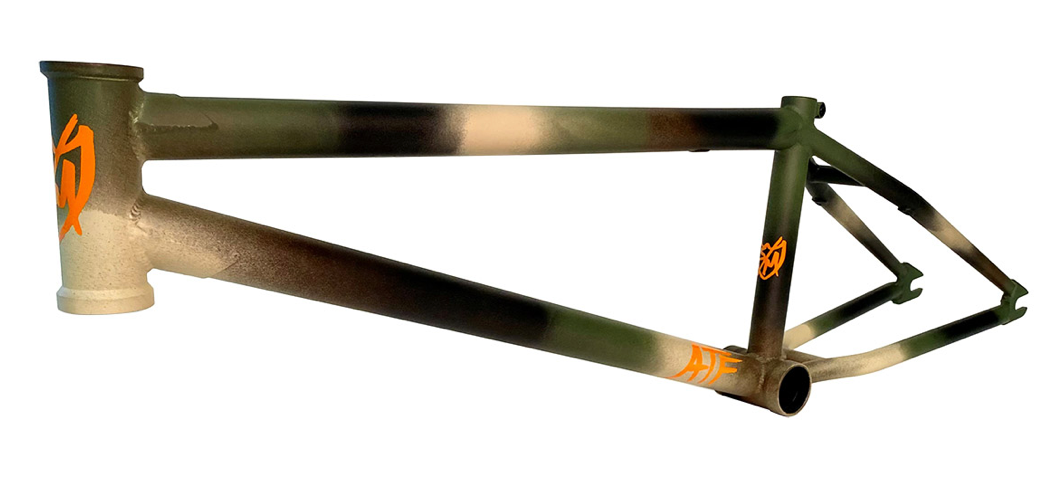

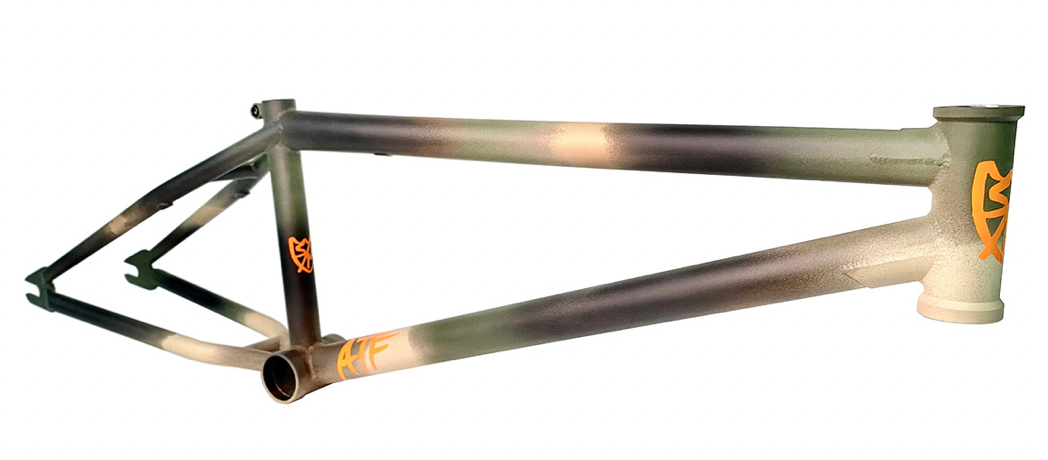

S&M ATF FRAME 20" CAMO 20.5
$499.00
By S&M BIKES
UP FOR SALE IS A BRAND NEW S&M BIKES USA MADE ATF FRAME!
FOR 20" WHEELS
IN CAMO!!!
FREE SHIPPING IN THE USA
Brake mounts not included.. $15 extra
SPECS:
This is the base model most of S&M pro signature frames have started
from for awhile now. It’s also the basic custom frame most of the
employees here ride. It’s a little stronger and heavier than some of the
frames on the market but it’s what people that really ride want.
Stylish, classic, and burly all rolled up into one.
from for awhile now. It’s also the basic custom frame most of the
employees here ride. It’s a little stronger and heavier than some of the
frames on the market but it’s what people that really ride want.
Stylish, classic, and burly all rolled up into one.
| REAR END LENGTH | 13.4″-13.875″ |
| HEAD TUBE ANGLE | 75° |
| HEAD TUBE STYLE | Integrated (45°/45°, 41.8mm) |
| SEAT TUBE ANGLE | 71° |
| SEAT CLAMP | Integrated |
| SEAT POST SIZE | 1″ (25.4mm) |
| BB HEIGHT | 11.7″ |
| BB STYLE | Mid w/EZ-out punch slots |
| STANDOVER HEIGHT | 8.5″ |
| BRAKE MOUNTS | Thread-On 990 (Mounts sold separately) |
| DROPOUTS | 14mm Slot, 4Q-Baked |
| GYRO TABS | None |
| WEIGHT | 4.65 lb (2.12 kg) |
| TUBESET | Butted True Temper SuperTherm Tubing |
