SALE S&M DJ DIRT JUMPER BJ FRAME SALE 22" BLUE AND GREEN
SALE ON LAST REMAINING S&M DJ FRAMES!

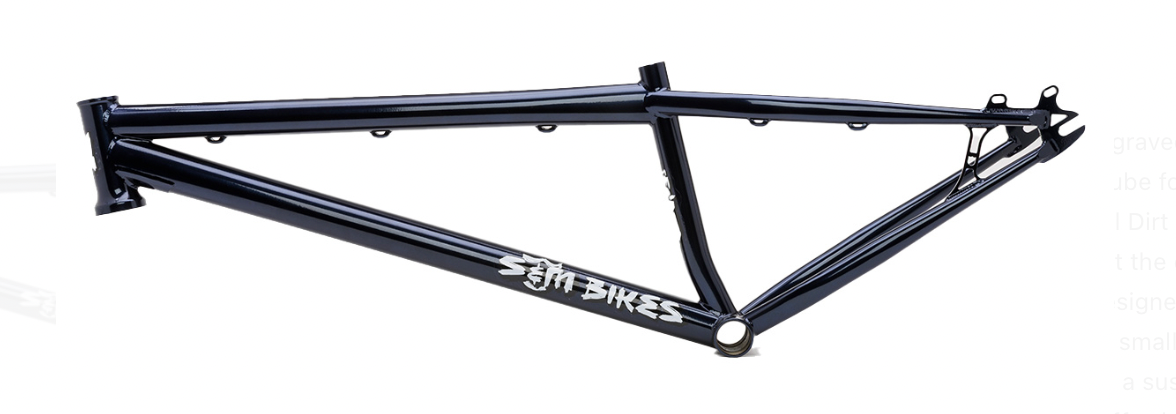

22" TT IN BLUE

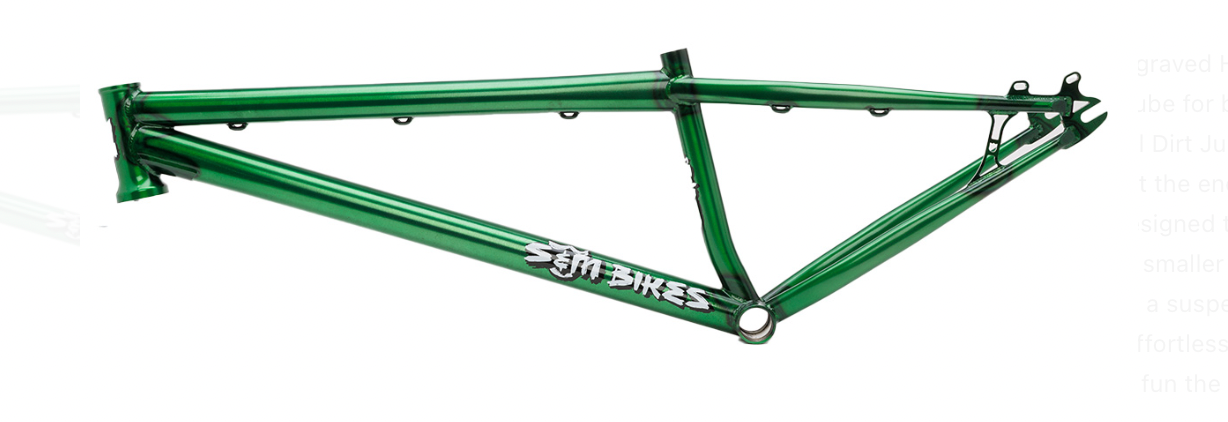

22" TT IN GREEN, ONLY 1 LEFT!
WE ALSO CAN CHROME IT FOR $300 MORE!
extra for Hawaii and Alaska and other non mainland
EUROPE: $130 USD
AUSTRALIA/NEW ZEALAND: $150 USD
MESSAGE ME FOR OTHER COUNTRIES. THANKS!
Second production run changes include an engraved Headtube, increased tire clearance, and a T-slot in seat tube for better QR clamping. We believe 20” bikes are the original Dirt Jumpers and giving that moniker to 26” frames blows, but at the end of the day all that really matters is the ride. Our 26” BJ is designed to go fast and high, soak up bumps and brake better than its smaller counterparts. And unlike a smaller-rigid bike, a 26” bike with a suspension fork and disc brake not only roasts transitions almost effortlessly, it leaves riders in better condition to have just as much fun the next day.
- Geometry based on 100 – 120mm Suspension or equivalent rigid fork
- Headtube accepts 1.5” Tapered Steerer
- Disc size is 160mm with 20mm IS to POST mount adaptor/140mm with 0mm adaptor
| REAR END LENGTH | 15.1″ Slammed |
| HEAD TUBE ANGLE | 69° |
| STANDOVER HEIGHT | 10″ |
| B.B. HEIGHT | 12.6″ (.400″ Drop) |
| SEAT TUBE ANGLE | 73° |
| HEAD TUBE | 120mm Tall Integrated 42mm/52mm 45×45 Style |
| B.B. STYLE | 73mm Euro BB |
| BRAKE MOUNTS | 160mm Disc with 20mm IS to POST mount adaptor (140mm with 0mm adaptor) |
| DROPOUTS | 3/8″ Slot, 135mm Spacing w/Integrated Tensioners |
| SEAT POST SIZE | 27.2mm Post – 30mm Clamp |
| WEIGHT | 6.15 lbs (22″ TT) |
| MAX TIRE | 26″ X 2.25″ slammed (2.35″ pulled back a bit) |
| MAX SPROCKET | 30T standard chain line (32 with additional Spacers) |
