S&M 22" wheeled Chrome Mad Dog frame fork kit 990 21.75

*** SORRY.. DISCOUNTS DO NOT APPLY TO THIS ITEM!****

YES! OUR LAST ONE! MADE 7/2025

WE GOT AN EXTRA FRAME AND FORK SET DONE. WE ONLY GOT 3 MADE.

ALL 3 WERE SOLD. BUT ONE CUSTOMER CHANGED THEIR MIND!

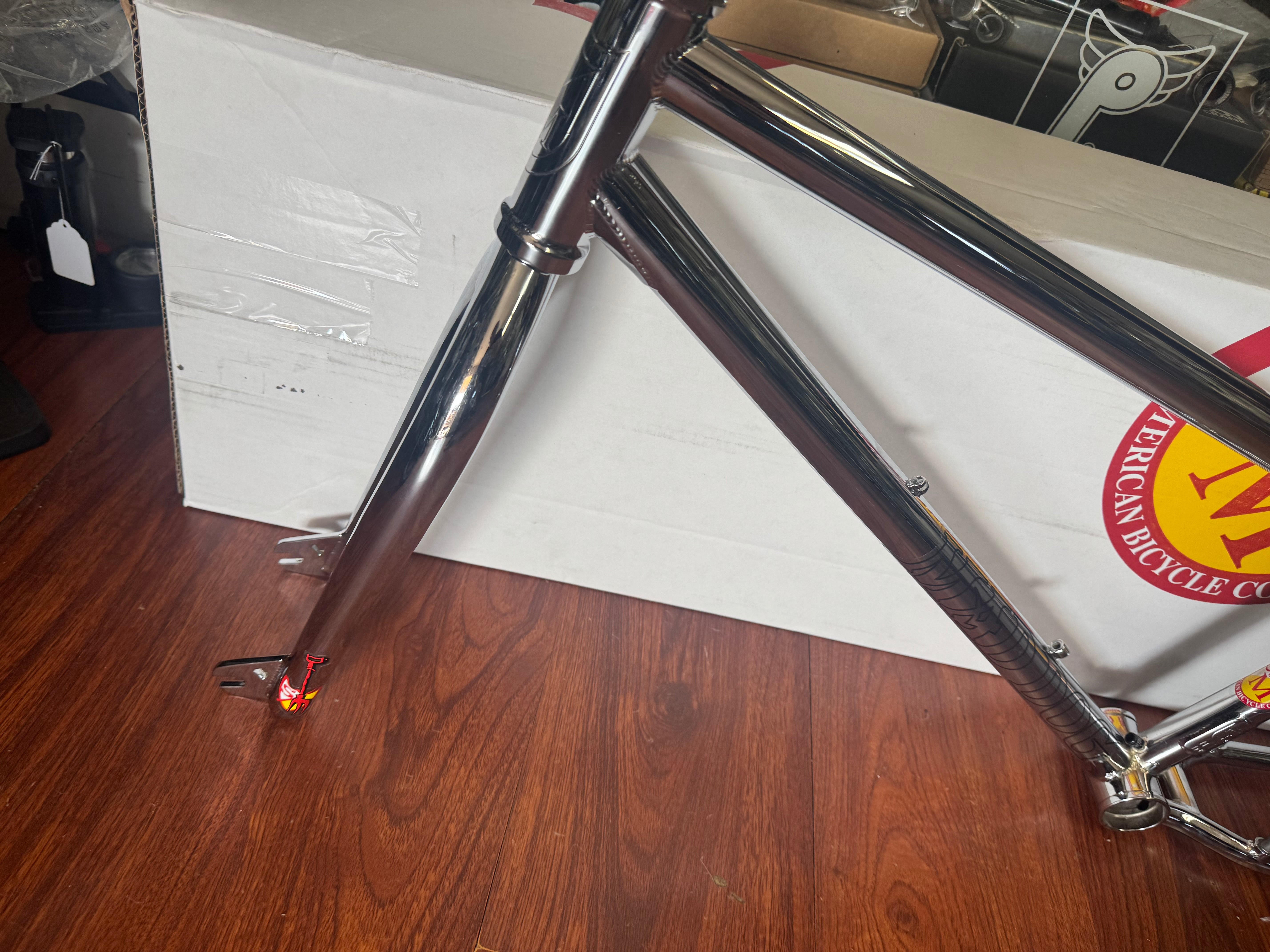

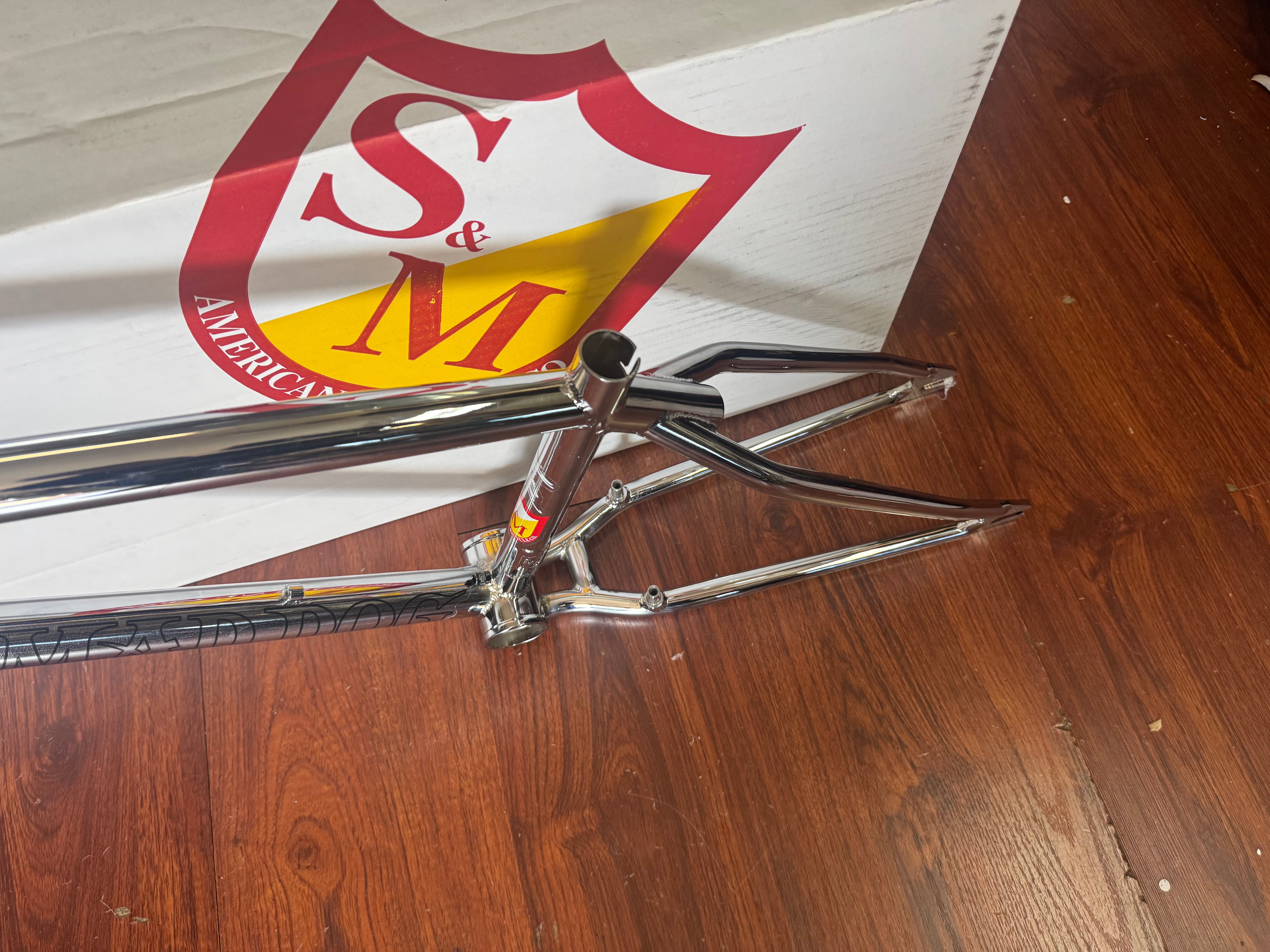

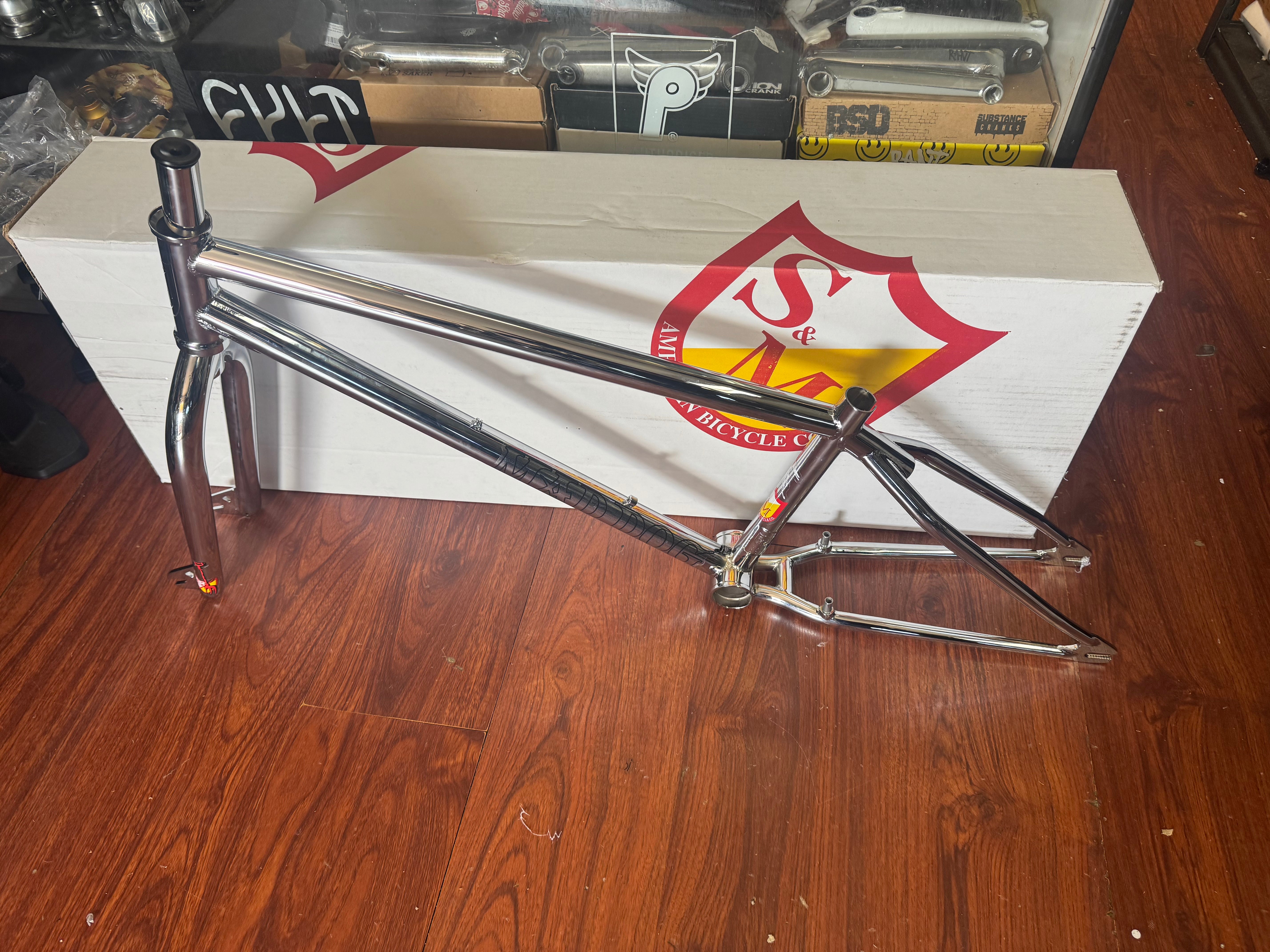

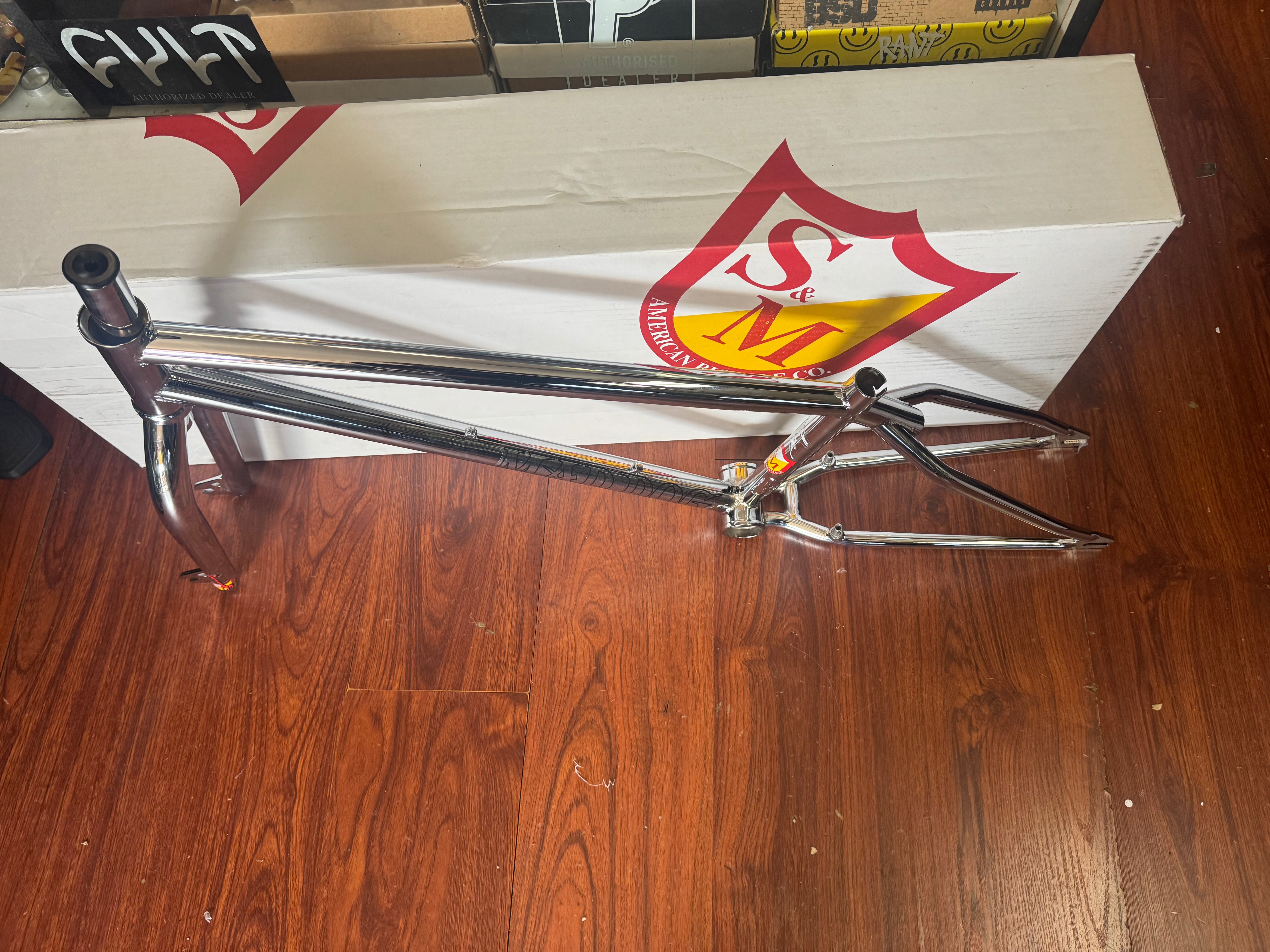

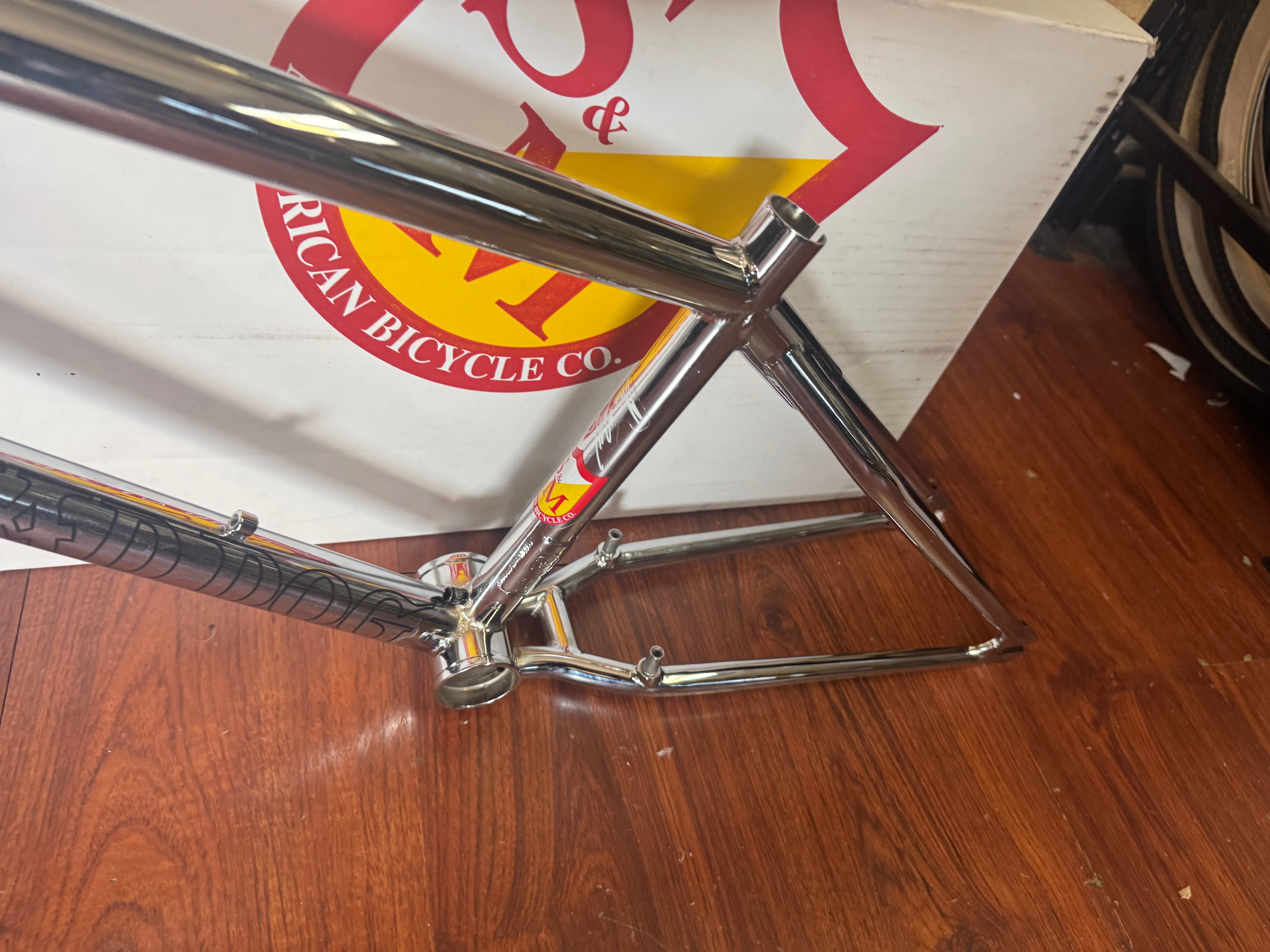

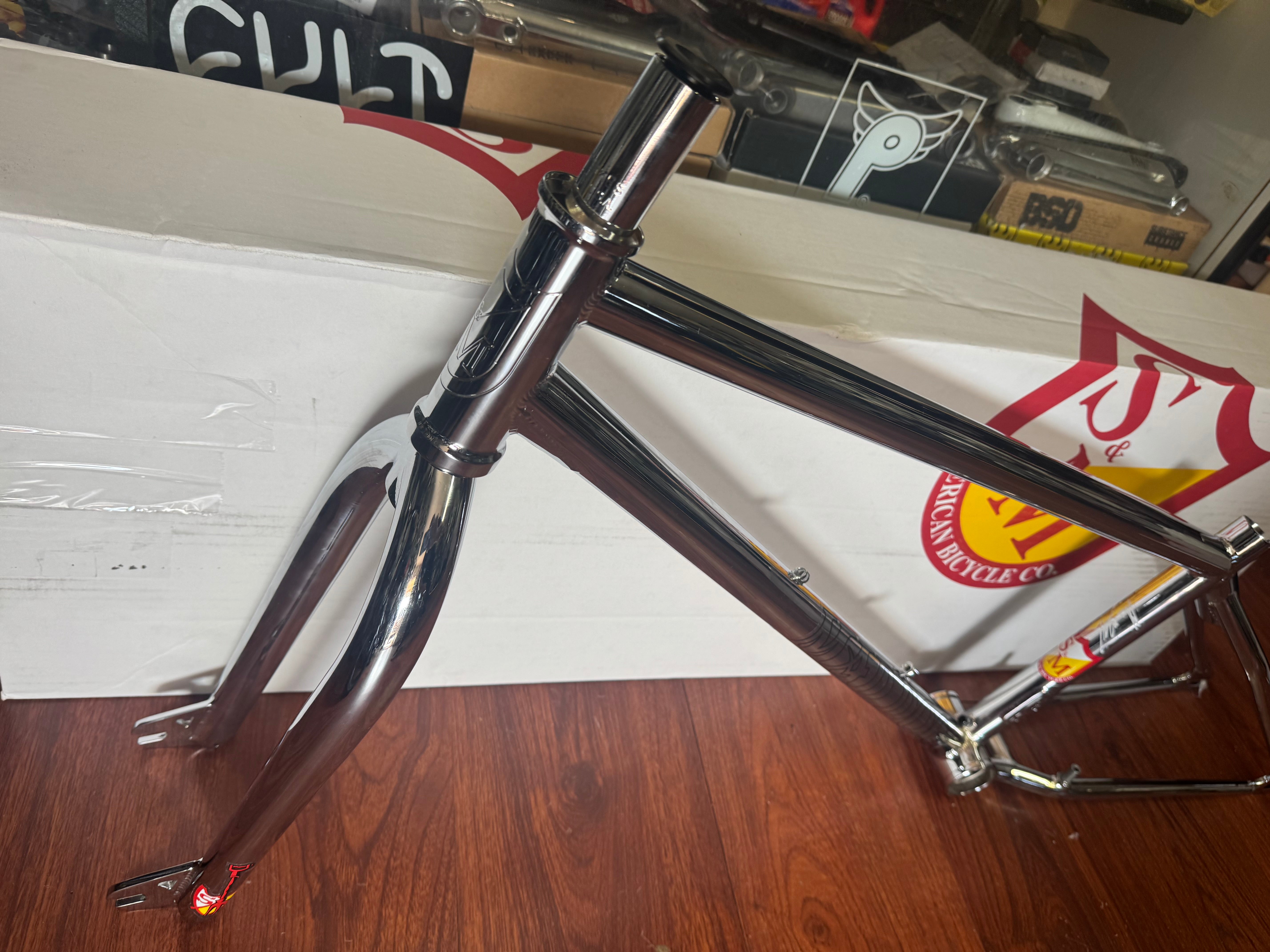

THIS IS A BRAND NEW S&M 990 CHROME MAD DOG FRAME FOR 22" WHEELS!

21.75 TT WITH MATCHING CHROME S&M WIDEMOUTH FORKS!

Throw a dog a wishbone! And a disc brake, with a tall stand-over, but keep it light and you’ve got yourself the reincarnated Chris “Mad Dog” Moeller frame. It only took 36 years for S&M’s Top Dawg to drop another bike custom-crafted for his breed of biking, but much like the original, its designed for dudes who want to terrorize the trails and the track and claim their territory doing it – this time on 22″ wheels!

Engraved Shield on Headtube. Engraved ’87’ on BB shell. MAD DOG-tag on seat-tube.

Disk mount is designed for 120mm rotor with 0mm IS to POST mount adaptor (Profile hub or hub with similar narrow flange width recommended for spoke/caliper clearance)  , 140mm rotor requires a 20mm IS to POST mount adaptor. Max sprocket size with proper chain alignment is 36 tooth. Seat tube is t-slotted for traditional 28.6mm seat clamp or Quick Release 28.6mm seat clamp. Rear drop-out spacing is traditional BMX 110mm.

REAR END LENGTH

14.15″

HEAD TUBE ANGLE

74.25°

STANDOVER HEIGHT

10″

B.B. HEIGHT

11.8″

SEAT TUBE ANGLE

71°

HEAD TUBE

5″ Tall Integrated Campy Style

B.B. STYLE

Mid

BRAKE MOUNTS

Chain-stay 990

DROPOUTS

3/8″

SEAT POST SIZE

1″ / 25.4mm – Frame slotted for 28.6mm Seatpost Clamp

WEIGHT

5.1 lbs

MAX TIRE

22X2.35″

MAX SPROCKET

36T
