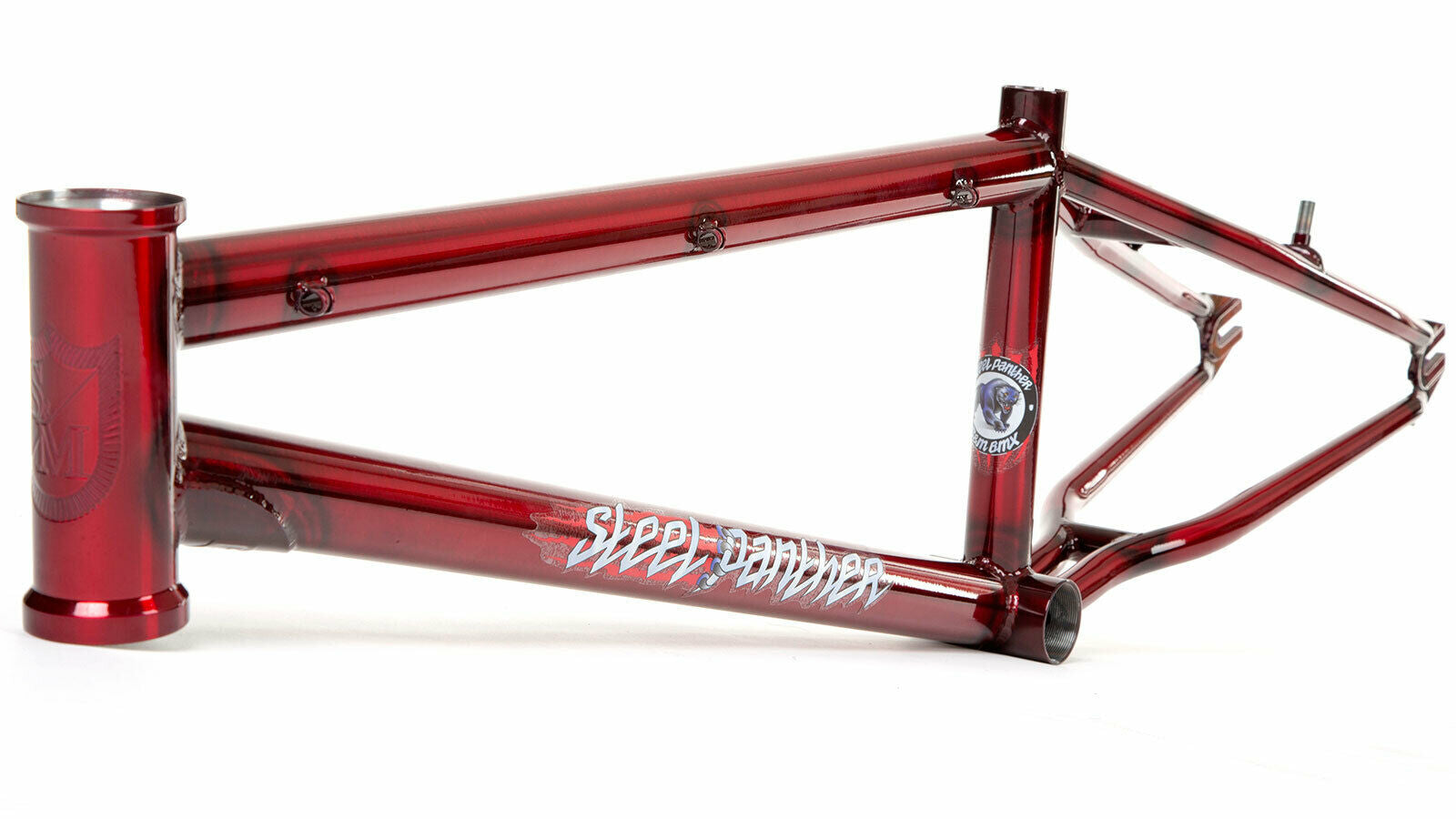

S&M BIKES STEEL PANTHER RACE FRAME TRANS CANDY RED 21.5
Prowling BMX tracks, easily preying on weaker Asian varieties, the American Steel Panther is King of the cr-mo race frame jungle. And unlike it’s predecessors the 38 Special and Speedwagon, it’s not named after a cheesy rock back from the 80’s.
Some notable improvements from the Speedwagon include: Additional bend in seat-stays for greater chain clearance, integrated chain tensioners in drops and slightly lower stand-over. Rear-end length depends on Top Tube length.
TOP TUBE/ REAR END |
21.5" 14.4"-15.4" |
HEAD TUBE ANGLE | 74.5° |
HEAD TUBE STYLE | Integrated (45°/45°, 41.8mm) |
SEAT TUBE ANGLE | 71° |
SEAT CLAMP | Traditional Slot |
SEAT POST SIZE | 27.2mm |
BB HEIGHT | 11.5" |
BB STYLE | 68mm Euro |
STANDOVER HEIGHT | 7.75" |
BRAKE MOUNTS | V Brake |
DROPOUTS | 3/8" Slot, Built In Tensioner |
GYRO TABS | None |
WEIGHT | 4.17lbs. (1.89 kg) (21") |
TUBESET | Butted Thermal-X |
