S&M BTM XL Frame Mike Hoder
$519.95
By S&M BIKES

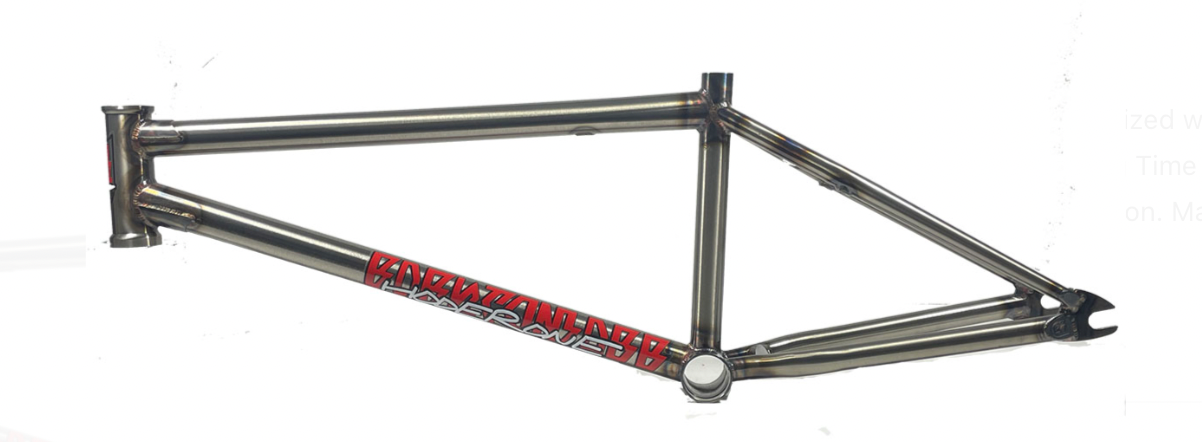

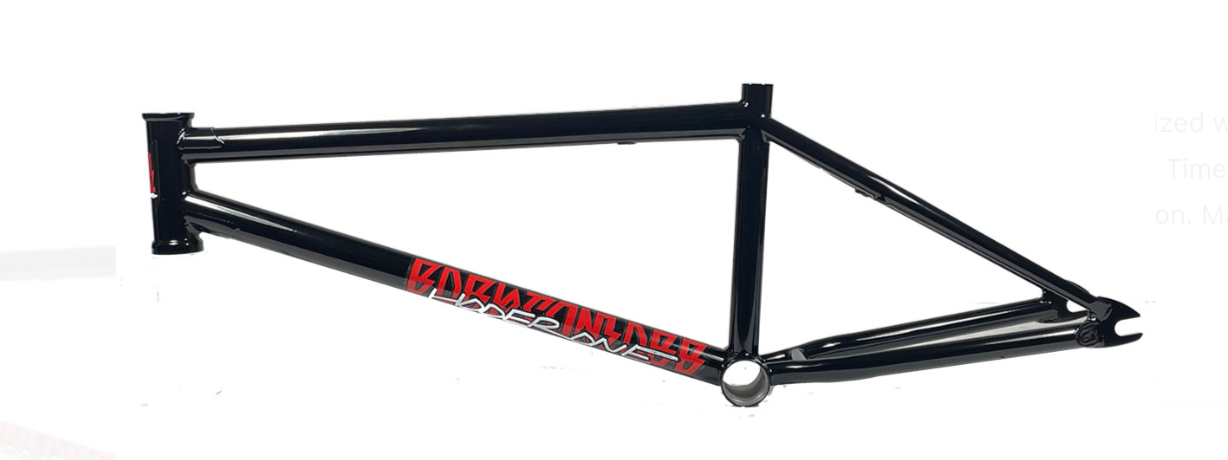

Mike Hoder’s signature BTM frame, up-sized with an extra long 5″ head tube and taller 9.5″ standover height. Big Time Machinery for big time guy. All chromoly, beast-proof construction. Made in USA.
|
TOP TUBE LENGTH |
21″,21.25″,21.5″ |
|
REAR END LENGTH |
13.05-13.50″ |
|
HEAD TUBE ANGLE |
75° |
|
HEAD TUBE STYLE |
5″ Integrated (45°/45°, 41.8mm) |
|
SEAT TUBE ANGLE |
71° |
|
SEAT CLAMP |
Slotted for traditional clamp |
|
SEAT POST SIZE |
1″ (25.4mm) |
|
BB HEIGHT |
11.5″ |
|
BB STYLE |
Mid |
|
STANDOVER HEIGHT |
9.50″ |
|
BRAKE MOUNTS |
Thread-On 990 Mounts (sold separately) |
|
DROPOUTS |
14mm Slot, 4Q-Baked |
|
GYRO TABS |
None |
|
WEIGHT |
5.4 lb (2.45 kg) |
|
TUBESET |
Butted Thermal-X |
